I’ve had users ask me how to do this several times and I’ve always forgotten what techniques I used to accomplish this. Here we’ll look at one way to do this.
The first thing we want to do is sketch a line where you’d like the liquid level. Then we’ll create a split line. To do this go to Insert, Curve, Split line. In this example, we want to project the sketched line onto the inner surface.
Next, we’ll create a plannar surface. To do this, select the edge that we just created with the split line and go to Insert, Surface, Planar.
The last step is creating the “liquid”. To do this we want to knit the planar surface we just created with the inside surfaces of the bottle. Go to Insert, Surface, Knit and select all the surfaces and check the box marked “try to form solid“

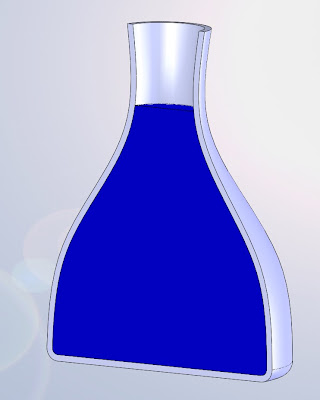

That’s it..! You now should have 2 Solid Bodies in your feature tree. I would recommend naming these to “bottle” and “Water” so you can easily select them to check the volume.
Stay tuned for another technique using Combine Bodies.
